Mil-Spec Circular Connector 31-Way Receptacle Kit
The MS3470A24-31S is a 31-way flanged receptacle circular connector kit with socket (female) contacts. The connector housing is black anodized aluminum.

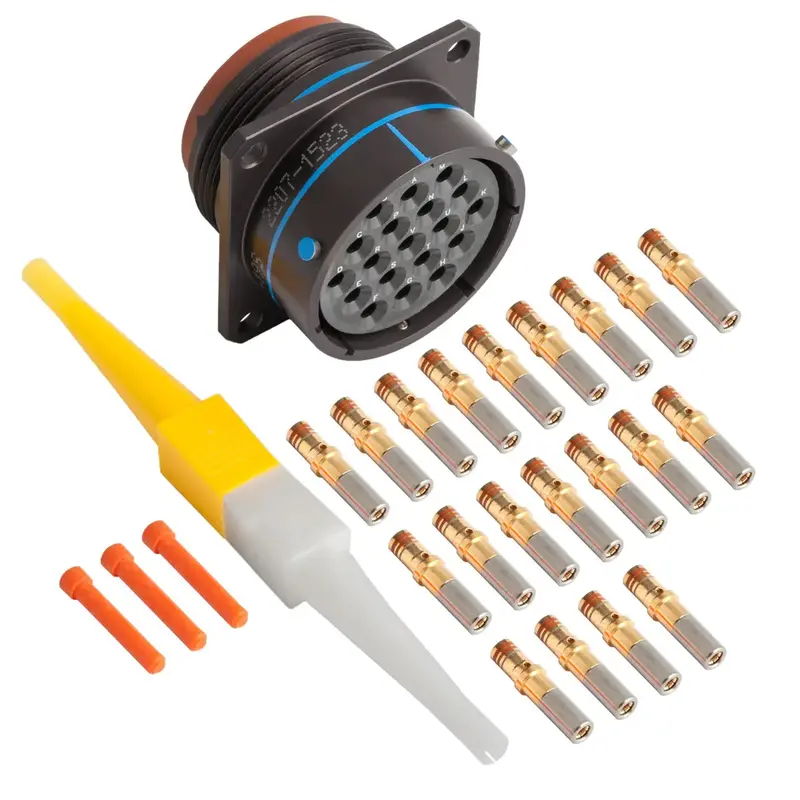

MS3470A24-31S Kit Includes:
- (1) 31-Way Flanged Receptacle Connector Body.
- (31) Size 16 socket (female) contacts 13 A M39029/5-116
- (1) Insert/Removal Tool M81969/14-03
- (1) Cavity Plug MS27488-16-2 Quantity varies by part number.
Required Crimp Tooling:
- DMC Crimp Frame: AF8 requires TH1A
- DMC Turret: TH1A requires AF8
- Deutsch: HDT-48-00 all in 1 tool.
- Econo Tool: 18880 size, 16 contacts only.
Shrink Boots:
- Straight: 202K163-25-0
- 90°: 222K163-25-0
Shrink Boot Adapter:
- M85049/60-2G24A
Nut Plate:
- M85049/95-24B
Notes:
- Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.
