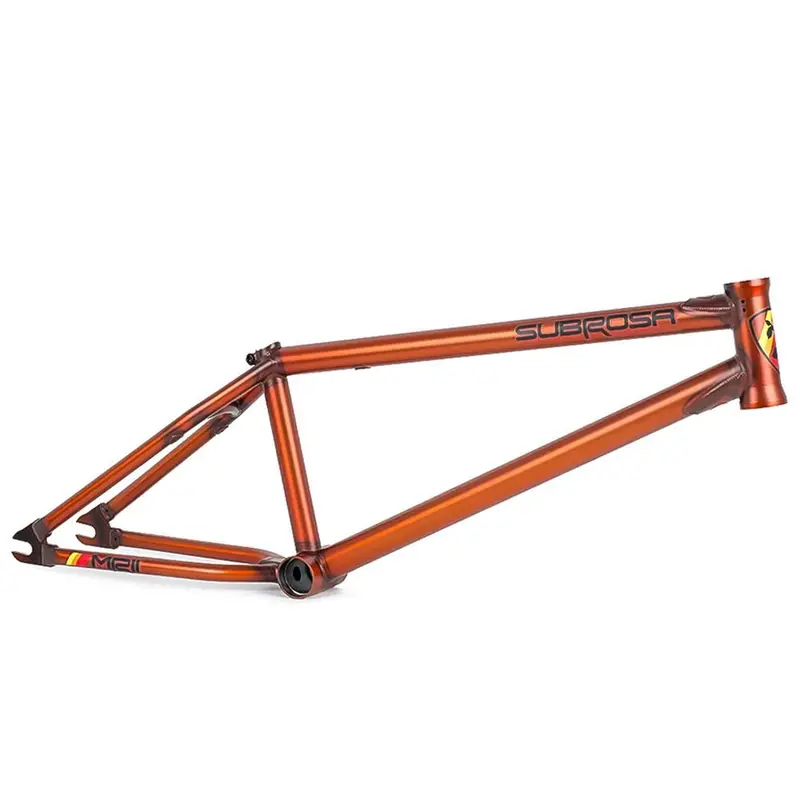

Subrosa MR2 BMX Frame – Lightweight Street-Oriented Chassis

Description

Matt Ray hasn’t left his signature MR1 Subrosa frame since getting his hands on it, now after plenty of time putting it through its paces its been refined and fine-tuned creating the MR2.

Its full 4130 chromoly construction utilises double butted top and down tubes, gusseted reinforcements at the head tube and a unique chain stay join for maximum strength and rigidity. They’ve also brought the standover height up to 9″ to make it a little more stable and the dropout slot length has been increased to make the frame compatible with more gear ratios.

###section###

Product Specs

1. MATERIAL: 100% Chromoly
2. HEAD TUBE ANGLE: 75°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 13.3″ – 14″
5. BB HEIGHT: 11.5″
6. WHEEL SIZE: 20″
7. STANDOVER HEIGHT: 9″
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable
12. GYRO TABS: Removable (Sold separately)
13. WEIGHT: 4.8lbs (2.2kg)

###section###

Product Highlights

• Neutral Geometry for responsiveness and stability
• Best suited to street and park riding
• High-quality Chromoly construction
• Gusseted tubing for added strength
• Strong and durable dropout
