S&M Hoder BTM XL Edwin Delarosa Signature BMX Frame

Description

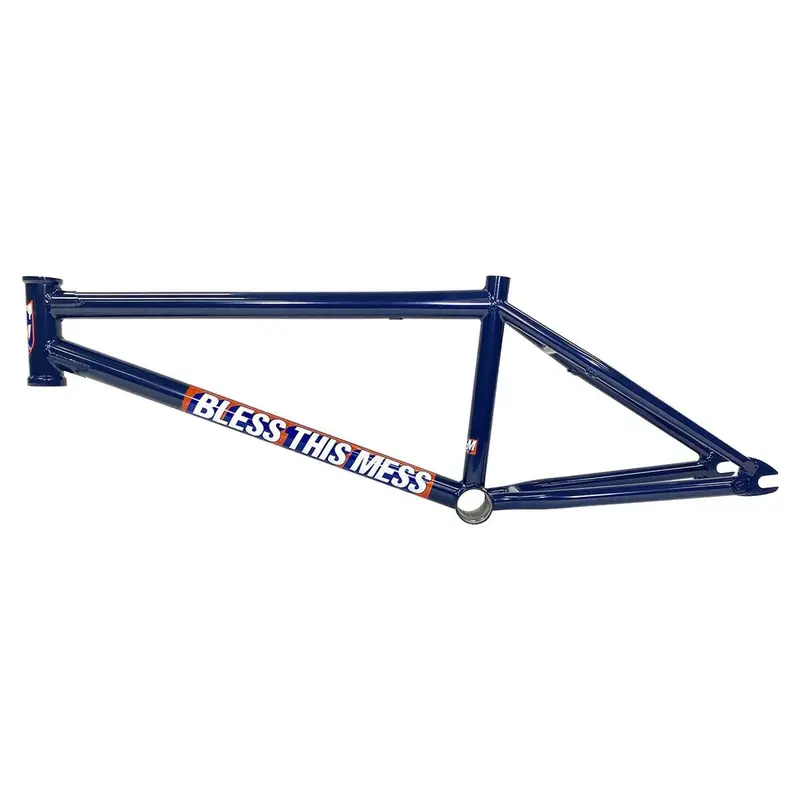

The Born to Mob or BTM frame is Mike Hoders signature frame from S&M.

Designed more for the street ride the BTM features a short back end, low BB height and butted true temper super therm tubing for great strength but still only weighing in at 4.6lbs.

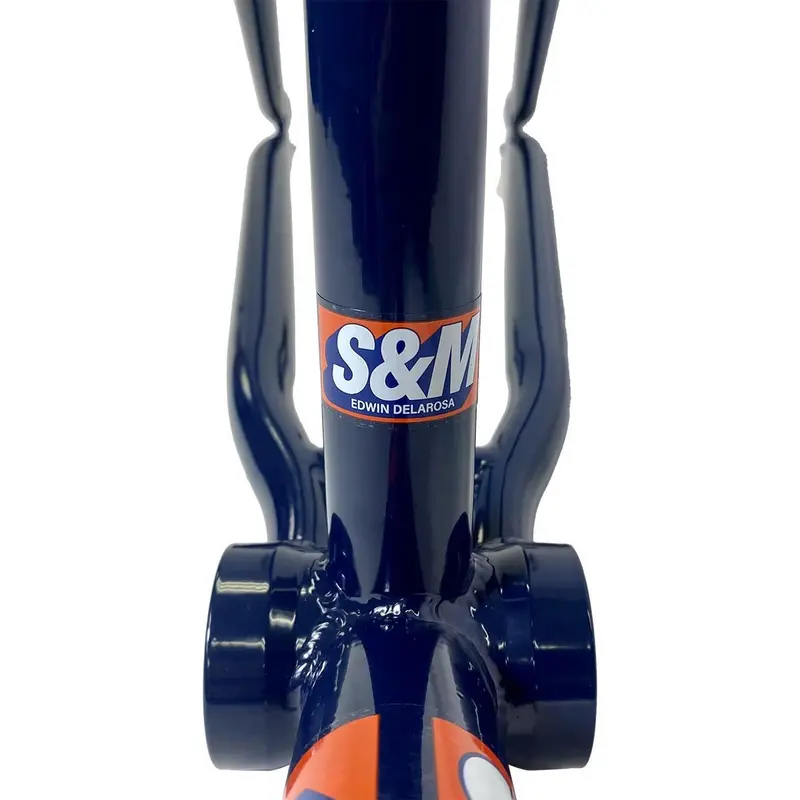

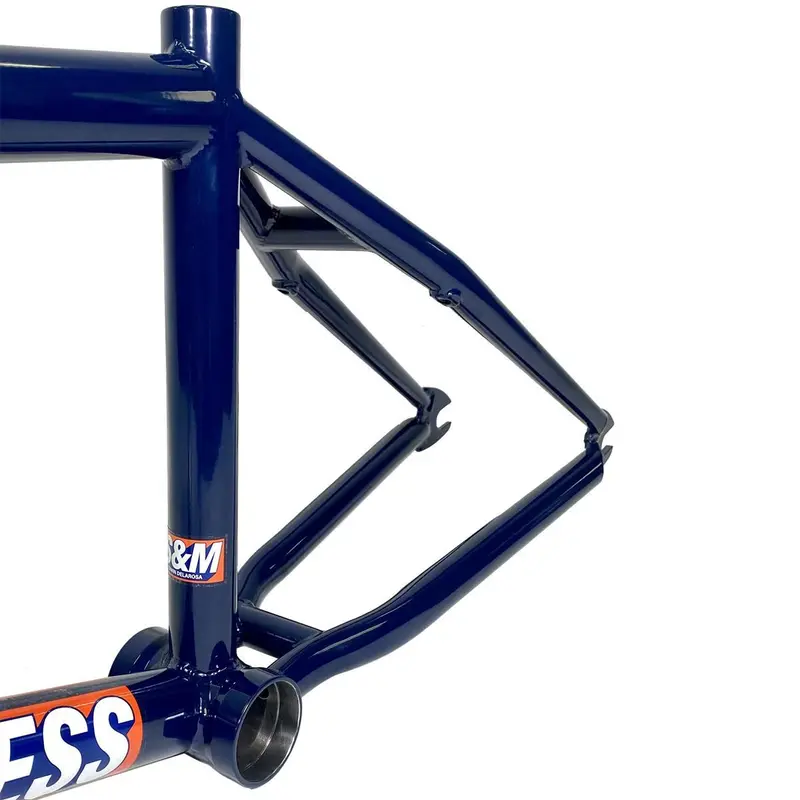

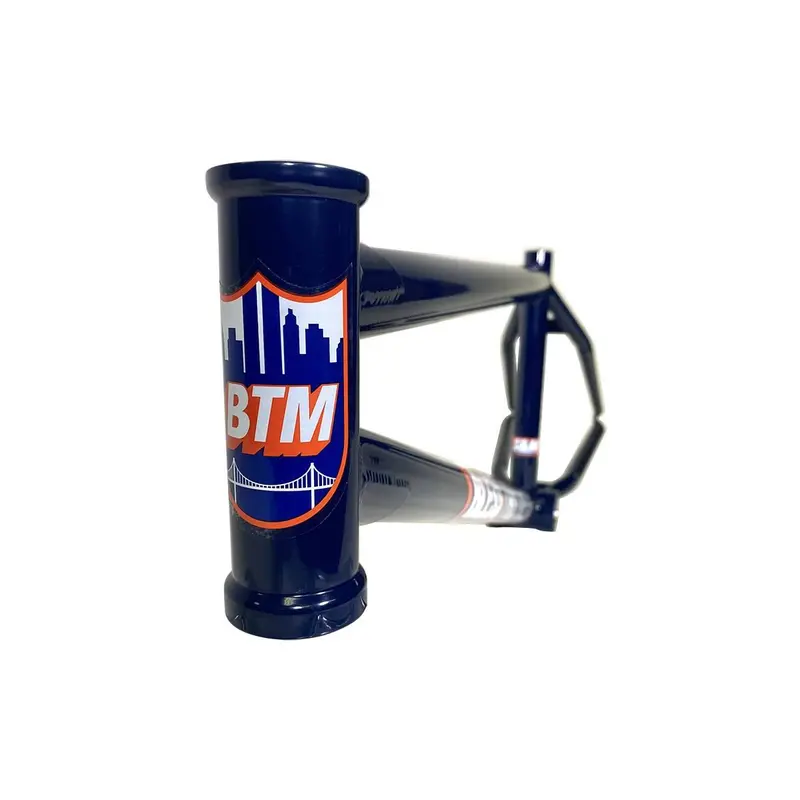

The BTM also has an integrated headset, top and downtube open end gussets for extra strength, externally machined Mid BB shell, an integrated seat post clamp, strong tapered seatstays with bosses for removable brake mounts (sold separately), 7/8″ diameter chainstays, tubular stay braces with a super cool BTM engraving, and 5mm thick 4Q-Baked dropouts.

###section###

Product Specs

1. MATERIAL: Chromoly
2. HEAD TUBE ANGLE: 75°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 13.05″ – 13.5″
5. BB HEIGHT: 11.5″
6. WHEEL SIZE: 20″
7. STANDOVER HEIGHT: 9.5″
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable (Sold separately)
12. GYRO TABS: None
13. WEIGHT: 5.4lbs (2.4kg)

###section###

Product Highlights

• Neutral geometry for responsiveness and stability
• Best suited to Street and Park riding
• High-quality Chromoly construction
• Made in the USA
• Gusseted tubing for added strength
