MS3476A18-11P 11-Pin Free-Plug Connector Kit – Lightweight Circular Plug Assembly

Description

Mil-Spec Circular Connector 11-Way Plug Kit

The MS3476A18-11P is a 11-way plug circular connector kit with pin (male) contacts. The connector housing is black anodized aluminum.

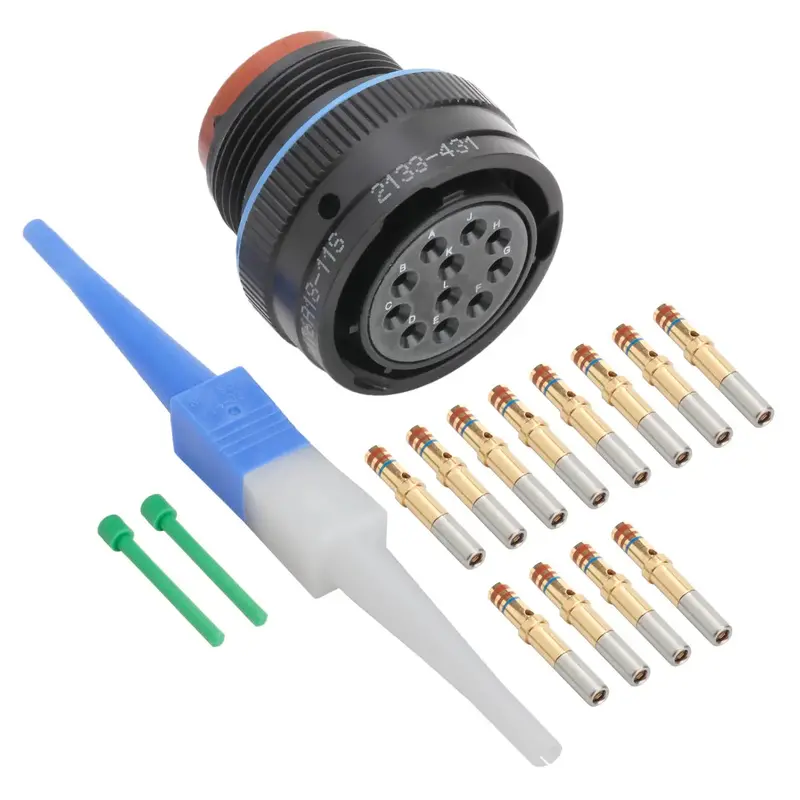

MS3476A18-11P Kit Includes:

• (1) 11-Way Plug Connector Body.
• (11) Size 16 pin (male) contacts 13 A M39029/4-111
• (1) Insert/Removal Tool M81969/14-03
• (1) Cavity Plug MS27488-16-2 Quantity varies by part number.

Required Crimp Tooling:

• DMC Crimp Frame: AF8 requires TH1A
• DMC Turret: TH1A requires AF8
• Deutsch: HDT-48-00 all in 1 tool.
• Econo Tool: 18880 size, 16 contacts only.

Shrink Boots:

• Straight: 202K153-25-0
• 90°: 222K152-25-0

Shrink Boot Adapter:

• M85049/60-2G18A

Notes:

• Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.
