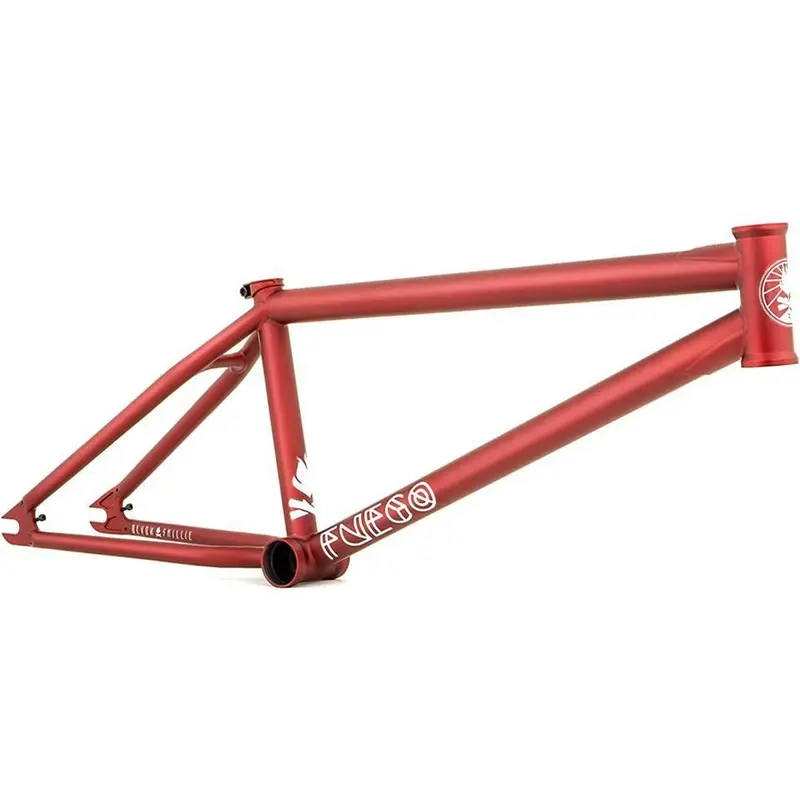

Fly Fuego 7 BMX Frame

Description

The latest version of the Devon Smillie signature frame takes the original geometry, but utilises improved tubing specs that help reduce the overall weight of the frame without sacrificing any of the strength.

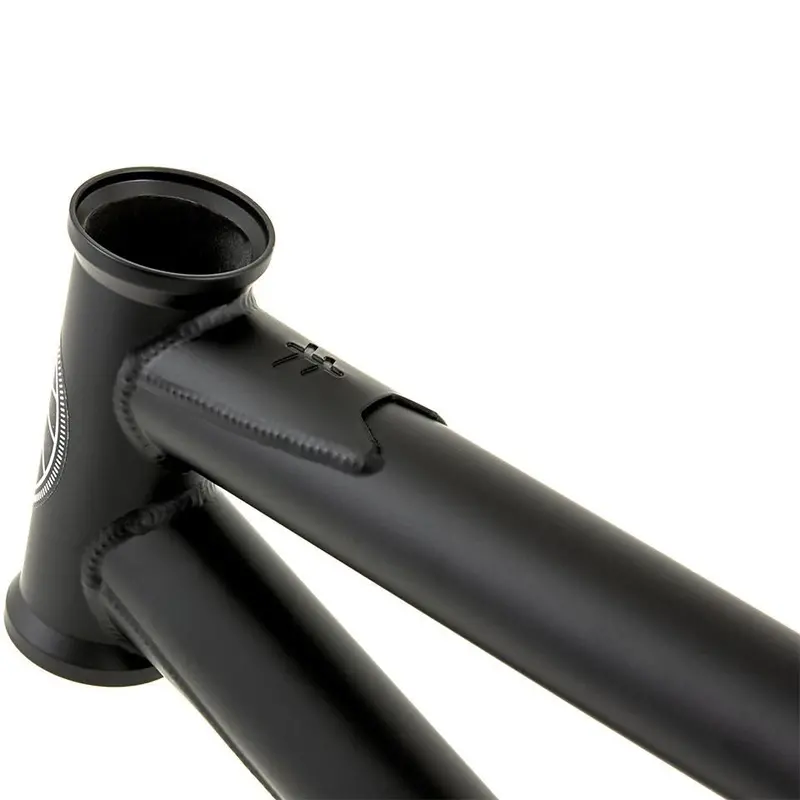

The frame features internal and external gussets, multi-butted and tapered tubing, an Investment Cast seat post clamp with the Horizontal Cut System, Investment Cast Dropouts and comes complete with integrated chain tensioners!

###section###

Product Specs

1. MATERIAL: 4131 Chromoly
2. HEAD TUBE ANGLE: 75.5°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 12.8″
5. BB HEIGHT: 11.75″
6. WHEEL SIZE: 20″
7. STANDOVER HEIGHT: 9.25″
8. DROPOUT SIZE: 14mm
9. HEADSET TYPE: Integrated
10. BB TYPE: Mid
11. BRAKE MOUNTS: Brakeless
12. GYRO TABS: N/A
13. WEIGHT: 5.1lbs

###section###

Product Highlights

• Responsive Geometry with Short Backend and Steep Headtube
• Best suited to Street and Park riding
• High-quality Chromoly construction
• Gusseted tubing for added strength
• Built in chain tensioners
