Description

PRODUCT DETAILS

The fastest Spring & Pawl Engagement System in BMX!  The Quad Hub features 150 ratchet teeth which engage every 2.4 degrees so what you get it is a super fast engaging hub. (You won’t know it’s not instant engagement!)

We provide 4 cog spacers which allow you to position the cog where it provides the best possible chain alignment.  Hubset comes with a 16t cog but is designed to work with any Shimano compatible cog.  Laced with 15G spokes and alloy nipples to 28H Rhythm Section rims.  Includes 16T aluminum cog and rim tape.

• Fixed independent leaf spring/pawl system acting simultaneously when engaged
• Less resistance and less wear = a smoother rotating hub
• Disc Rear requires a 6-Bolt Rotor
• For Crupi frames, we recommend the Elevn Disc adapter kit with a 120mm rotor
• 20 x 1-1/8″ Weight = 2lbs 13oz – set Rider weight limit = 125lbs
• 20 x 1-3/8″ Weight = 3lbs 5oz – set Rider weight limit = 140lbs
• 20 x 1.50 Weight = 3lbs 2oz – set Rider weight limit = 140lbs
• 24 x 1-1/8″ Weight = 3lbs 5oz – set Rider weight limit = 135lbs
• 24 x 1-3/8″ Weight = 3lbs 12oz – set Rider weight limit = 135lbs
• All wheels require Presta Tubes except for the 20 x 1.50 wheels which require Shcraeder tubes

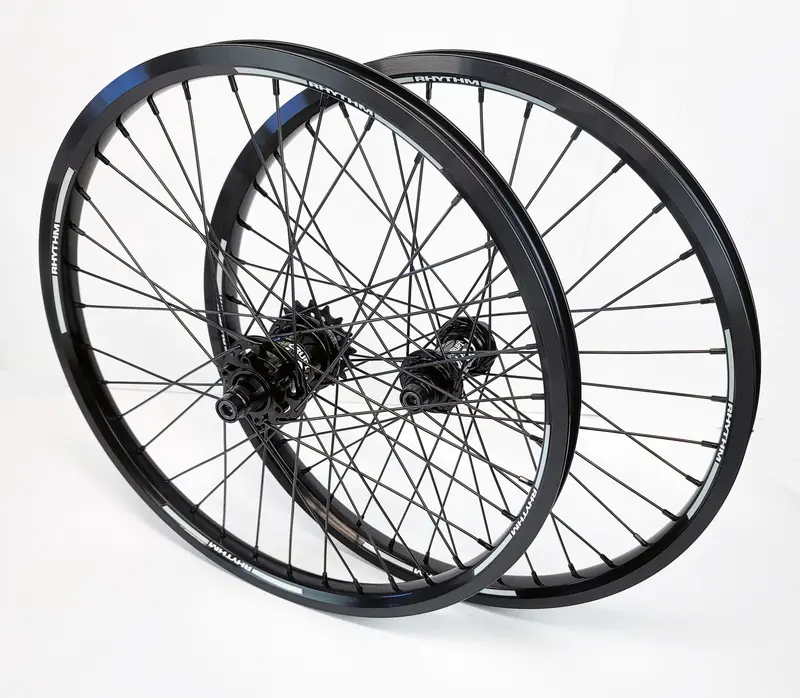

• Black wheels feature Black rims, hubs, spokes and nipples
• Silver wheels feature Silver rims with silver spokes on Black, Red or Blue hubs only
• White wheels feature White rims with black spokes on Black, Red or Blue hubs only

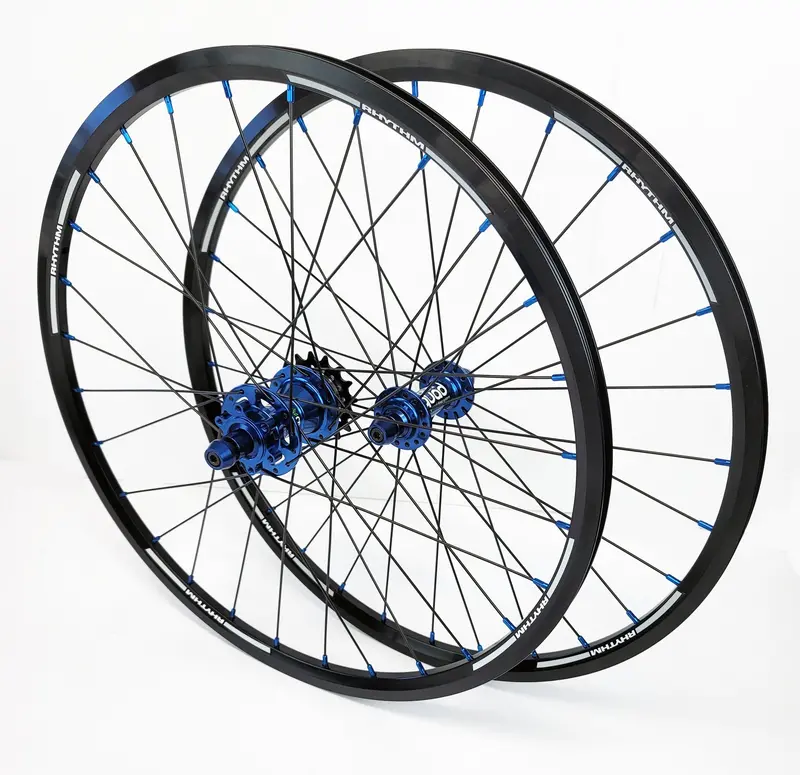

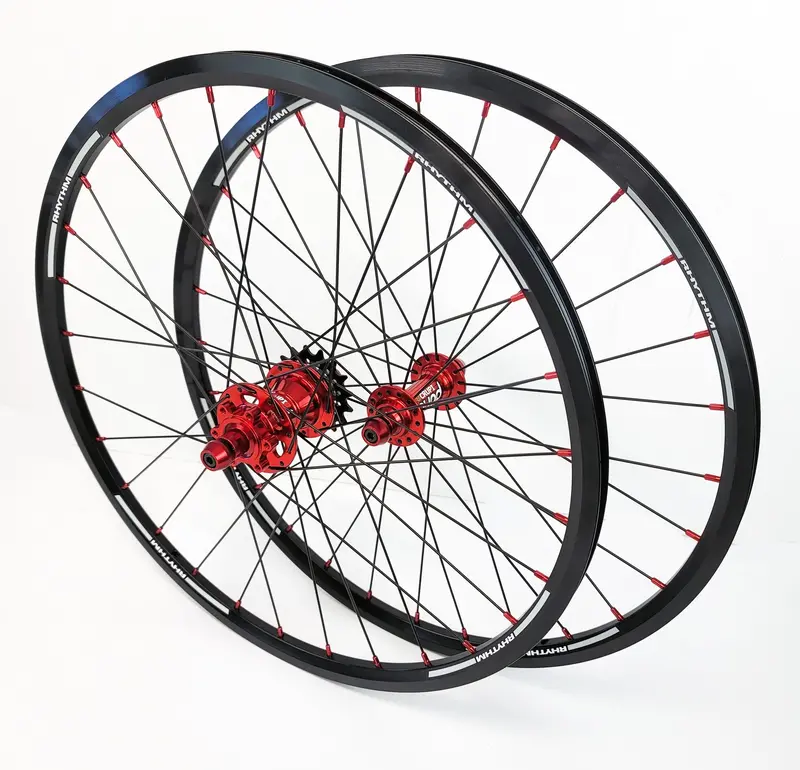

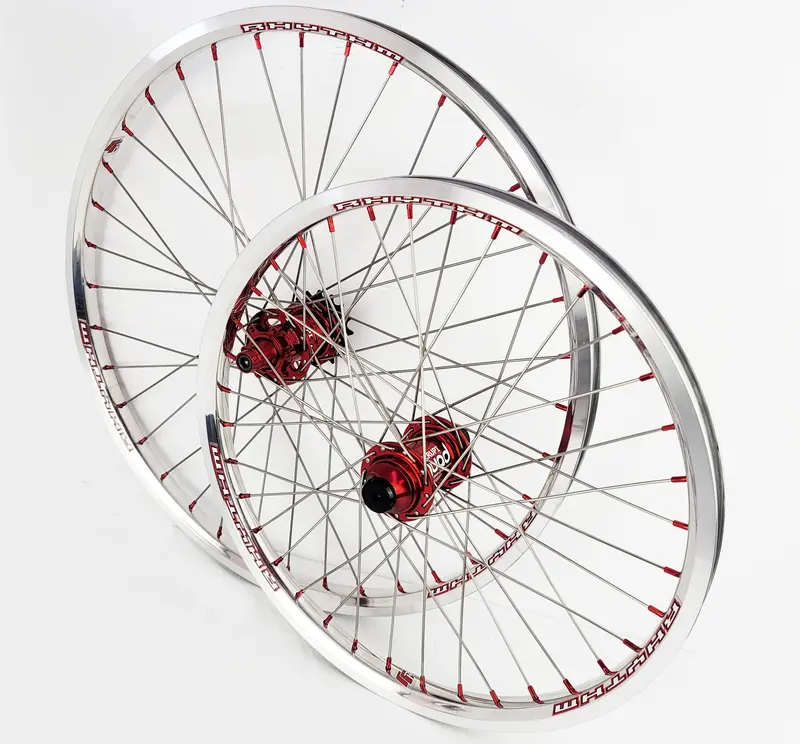

• Red and Blue wheels feature black rims with red or blue hubs & nipples to match
