Description

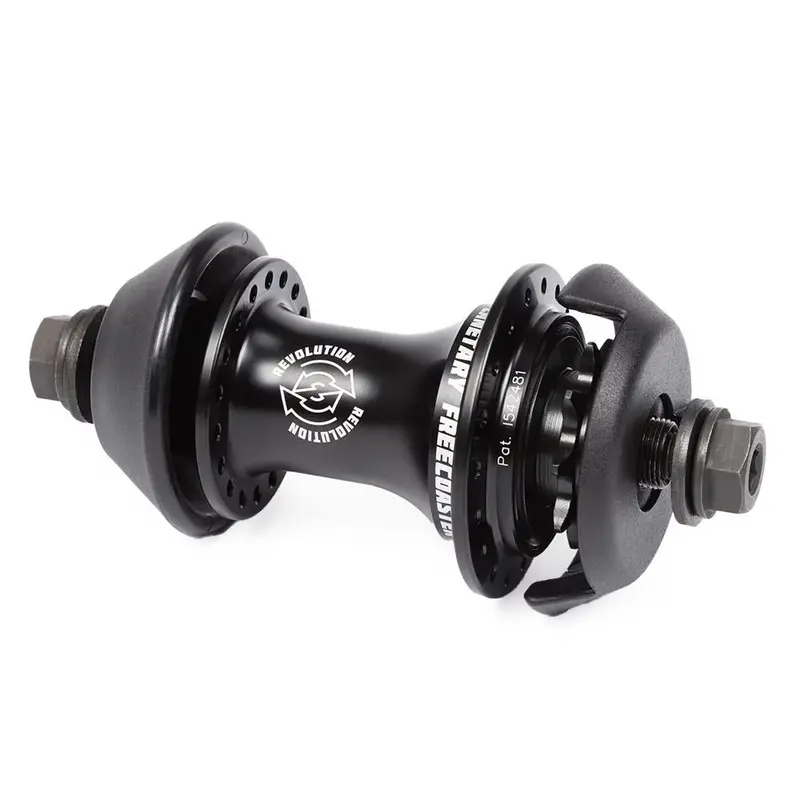

The BSD Revolution Hub is a next-generation Planetary freecoaster, it’s a hub that feels like a cassette hub, weighs the same as a cassette hub, has a pedal gap like a cassette hub and sounds like a cassette hub.
Sounds like a dream huh? Well now it’s a reality with the BSD Revolution v1.5 Hub with the new upgraded v1.5 spring loaded clutch. *This is the new female axle version of the hub* At the core of the system is the Planetary Clutch Mechanism, a compact, innovative clutch that replaces the traditional heavy cone-style clutch with a lightweight assembly.
This advanced mechanism enables immediate pedal engagement with virtually zero pedal gap, while eliminating unwanted engagement during fakie manoeuvres. Utilizing the Planetary clutch system that functions in a unique and revolutionary way, the BSD Revolution hub eliminates many of the problems associated with the heavyweight traditional cone style clutch design.
Features:
- 30% lighter than conventional freecoaster hubs.
- No gap when pedalling forward.
- Eradicates unwanted engagement on rollbacks.
- Feels and sounds like a cassette hub.
- No need for oversized hub bearings due to low axial load.
- Supertough hollow male 14mm chromo axle.
- Includes BSD-specific hubguards for optimal grind protection
Dimensions for spokes:
- Drive side Flange diameter 67mm
- Spoke hole pitch circle diameter 58mm
- Non drive side Flange diameter 54mm
- Spoke hole pitch circle diameter 45mm
- Center to flange 26mm
